His name is *Tony* Heller. The Peak Stupidity reader will have to forgive us for occasionally accidentally-on-purpose calling him Toby Heller, Tony Flenderson, or Toby Flenderson. See, this guy is one of the scientists featured in the educational video Climate: The Movie (The Cold Truth). (Please check it out - the whole movie is there.) Tony Heller is a Geologist, Environmentalist, and Electrical Engineer, but a die-hard The Office fan would have a hard time not seeing the uncanny, or at least not very canny at all, resemblance between him and timid, butt-of-the-jokes HR representative Toby Flenderson. That's the case with both his looks and his voice, the latter only of which is in this short video I came upon.
Mr.
The video will appear in the next post, as I really want to get to the math first. Our title here is somewhat facetious itself. "A linear best-fit 'curve'" and "Linear Regression" are the same thing. The joke is that Mr. Heller has expanded the use of Linear Regression to best fit Climate Alarmists' needs! Another best-fit (groan) term for this analysis is "Method of Least Squares".**

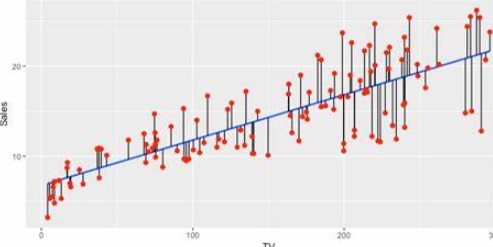

In this upcoming video, Toby shows a graphic with a dozen or so different highly alarming climate graphs and then shows the subterfuge behind each (or most of them). All of them are single variable attempted correlations of supposed climate trends to time, as in "The sky is falling!".
The math: You've got a graph like the one above, and you want to find the "best-fit" curve, often a line, to keep things simple. What's the best fit? Well, you 'd probably want to minimize the average error (distance from the y-values of the points) from said line. What line?! Why, mx + b, of course. Every line can be written in this slope and y-intercept (where the line would cross the y-axis) fashion. Yeah, but we don't know m and we don't know b! Right, that's the point, but what we DO KNOW is all of the many x and y values of our observational (the case with the climate) or experimental data. Call the points (x1, y1), (x2, y2), etc, or (xn, yn), where n goes from 1 to the last one of your data points. These are all KNOWN, keep in mind.
So, you take the difference between each point's actual yn value and the y from y = mxn + b. Yeah, but you don't know the equation for that line. Just humor me, and pretend we do. That's how mathematicians think. (It works.) Let's sum up all the differences over all those points, between the actual y's that we've got and the y's were they on the line and minimize that sum to get the best-fit line. Those differences will each be yn - (mxn + b).
Well, a couple of things crop up. First, numbers below said line and others above might start cancelling each other out - they'd make a line look like a great fit, when the data is all over the place. OK, then, just square these differences to get rid of the negatives. Do we need to take the square root later though? No, we don't, because we really don't care about the total sum of differences in the end but just about minimizing such. That square root would make the math messy. Nobody likes that, even, no, especially, the geeks.
What about that minimization thing? We want to find that line, the "m" and the "b" that gives us the least (see?) sum of these squares (see?). We've got one long function with lots of constants we know, the data pairs (xn, yn), with m and y being variables. How do we minimize a function? Take its derivative, and set it equal to 0! That's not me shouting, that's a Professor from untold years ago shouting, because, by George, we got it and were saying it with him.
The derivative*** of a function gives the slope of that function, and, unless said function is itself a line, the derivative is a function itself. When we are at a maximum or minimum, the slope of the function at that coordinate(s) = 0. So we solve for the coordinate(s) such that the derivative = 0. Wait which is it, max or min? Well, we'd have to take the 2nd derivative, that is, the derivative of the 1st derivative function. That 2nd function tells the slope of the slope curve. If it's negative at that coordinate(s), well it's a maximum, because, going along, the slope is decreasing, from upwards though 0, and then downwards. Vice versa applies.
Ahaaa! Is that what Peak Stupidity's Title Bar, up for over 8 years now, is all about? Indeed, BUT, we put in the fancy Greek ฮด's (deltas) just to make it look more mathy. (Yes, welcome math geeks!) For a derivative of a function of one variable, the symbology for derivative has plain old English "d"'s instead. However, what we have in this Least Squares/Linear Regression problem IS a function of 2 variables (hence, the "(s)" written after "coordinate" above).
Remember that the function we're minimizing is NOT that line y = mx + b, but it's that sum of the squares of the differences between the yn's and the y's of the best-fit unknown line. It's a function of 2 variables, m and b. This can be imagined easily, as it looks like a 2-d surface, its height a function of the variables m and b on a plot on the paper.**** (See above, but you don't really NEED the color scheme unless your are one of those Alarmists. Then, it helps, a lot.) There is a lowest point on the surface, for which both m and b are minimum values.*****
To get these, we must take partial derivatives, one for each variable. Doing that means we treat one variable as a constant while we take the derivative of the function "with respect to" (important wording) the other. Partial derivatives make use of that small Greek ฮด's instead of "d".****** We set each of these resulting partial derivative functions = 0. We end up with 2 equations and 2 unknowns. This should be easy. Well, I'd forgotten that maybe I never did actually do this part in the past.

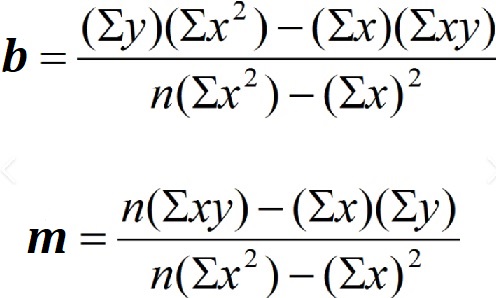

The calculations with all these various sums look like a lot of work, but one can see that they are perfectly made for use of a spreadsheet. That wouldn't be hard. Better yet, though, the spreadsheet programs have long, long had the Linear Regression functions built in them. Graph your stuff and right-click somewhere, and Wallah! - there's your best fit line. (Or if you want, a higher-order polynomial or maybe all kinds of things.) Computing power is nearly free!
That's what the Climate Alarmists do. They probably couldn't understand this math, but they can use spreadsheets. Wait, so is Peak Stupidity upset because these people are using the 200 y/o simple Linear Regression math to show us our bleak carbon-wrecked future? It seems perfectly scientific and all.
I'll put the short video up later today, and you'll see what they're up to. The Peak Stupidity reader likely already knows the form of lying to be addressed, but Tony Flenderson will explain it nicely. (Beats filling out HR D.I.E. paperwork.)
* Another, also simple-math-based method will be described herein, as learned during an on-line argument with an Unz Review commenter about ice mass at the Earth's poles.
** This term does not apply only to linear regression. It can be used for best fit polynomials, or I guess, whatever.
*** For a polynomial function, taking the derivative is a simple easy procedure.

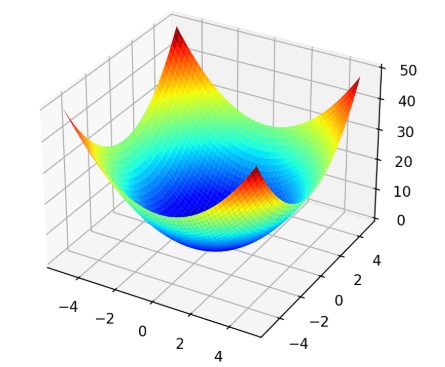

**** Once you get to 3 variables or more, good luck imagining the function's shape. Certain drugs may help.
***** How do we know we'll get a minimum vs. a maximum with the Calculus here? Ahhhhh, well, it's got to be a minimum because [hand-waving ensues]... there is a reason within the math.
****** Could the value of Stupidity be a function of more than one variable - it's time right now - so we can use those fun ฮด's legitimately? Why not have a variable "d", which is distance from... the nearest border or coastline of California?
******************************************
[UPDATED 02/22 Eve.:] Added the 3-D plot graphic.
******************************************
******************************************
[UPDATED 02/23:] Updated the 2 equation graphic.
******************************************
